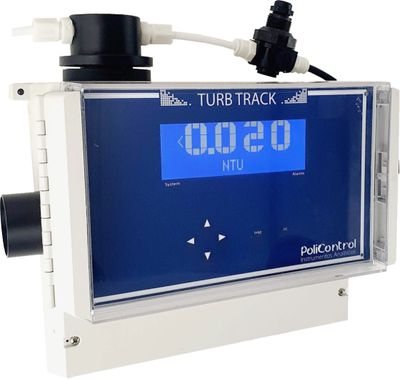

Turb Track Process turbidimeter - ISO -
Online Turbidimeter for water, wastewater, reservor water, and monitoring applications. Multi sensor design delivers great low-level precision and sensitivity while minimizing variability between measurements
Specifications
- Range:0001 – 1000 NTU
- Accuracy: ±2% of reading or ±0,02 NTU (<40 NTU)/±5% (40 to 100 NTU).
- Resolution: 0,0001 NTU
- Method: ISO 7027
- Light Source: White Light (tungsten)
- Sample chamber: 30 ml with bubble removal
- Detector: Multidetector compensates for sample color/light fluctuation/ stray light.
- Display: LCD
- Calibration: 4 points - sealed stabilized Informazione
- Analogic Output: 1x 4 to 20mA Galvanic isolated
- Alarms: 2 hi/Lo, NTU, and % hysteresis
- Digital Output: RS485 - Modbus
- Data Storage: 2000 readings
- Power Supply: 110/220 V / 24V
Sampling
Twist lock sample chamber
Twist lock sample chamber
- 30 ml sample chamber provides a fast and accurate response to changes in turbidity.
- The desiccant cartridge removes possible readings error caused by condensation in the sample cuvette.
Twist lock sample chamber
Twist lock sample chamber
Twist lock sample chamber
System securetly locks sample chamber and glass cell in place increasing accuracy and data safety
Calibration
Twist lock sample chamber
Calibration
Unique fast and easy calibration/verification with extremely low maintenance, one calibration kit can be used for multiple instruments.
